禄徕Rolleiflex Automat各个型号时间表

禄徕Rolleiflex Automat

Rollei Twin Eye Reflex型号Automat的时间顺序概述

毒镜头在这里展示了自1928年第一台Rolleiflex推出以来所生产的所有Rollei TLR Automat相机型号的全面规格。所有数据均来自Franke&Heidecke的存档表,但请注意,某些数据可能与已在其他地方发布,这是由于各种资源的差异。使用这些数据作为您所用或新购买照相机的参考,列出您的Rollei系列,并了解有关独特的Rollei双眼反光相机的更多信息。



中文翻译

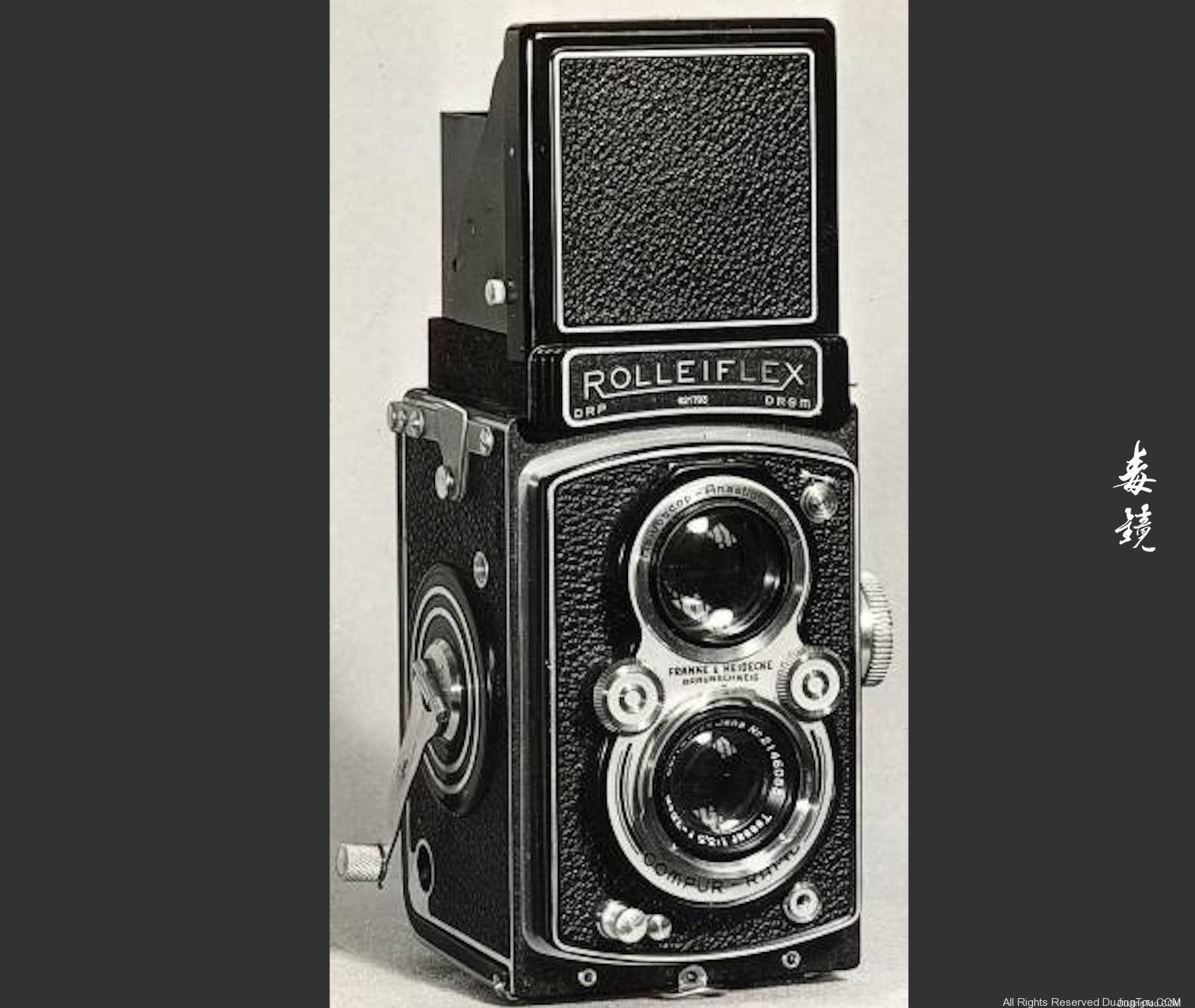

Rolleiflex Automat 6×6 – 型号RF 111A
Highslide JS 1937年8月 – 1939年3月
连载:568.516 – 805.0000


拍摄镜头
Zeiss Tessar 3,5 / 75
Bayonet I
Finder镜头
Heidoscop Anastigmat 2,8 / 75mm
推28.5mm
快门
Compur – 快速,1 – 1/500秒,T&B。
电影:6×6:B II带有Rolleikin I适配器的8(120)和35mm。

胶片输送:自动停止的缠绕杆,没有红色窗口,没有彩色涂层的薄膜压力板。杠杆还可以打开快门。双重暴露预防。
尺寸
:14.3×8.6×9.0cm
重量:850克。此型号带有铰链背面和曝光指南。相机可以与Rolleikin I一起使用,使用35mm胶片和特殊的玻璃板胶片适配器。后来的型号有一个快门释放安全锁。他的模型的以下部分可以现代化到1955标准:腰部水平取景器,更大的聚焦旋钮,双重曝光安全锁,观察镜头卡口,X同步接触。

英文原稿

Rolleiflex Automat 6×6 – Model RF 111A
Highslide JS August 1937 – March 1939
Serials: 568.516 – 805.0000


Taking Lens:
Zeiss Tessar 3,5/75
Bayonet I
Finder lens:
Heidoscop Anastigmat 2,8/75mm
Push on 28.5mm
Shutter:
Compur – Rapid, 1 – 1/500 sec., T & B.
Film: 6×6: B II 8 (120) & 35mm with Rolleikin I adapter set.

Film Transportation: winding lever with auto stop, no red window, film pressure plate without color coating. Lever also cocks the shutter. Double exposure prevention.
Dimensions
: 14.3×8.6×9.0cm
Weight: 850 grams.This model has a hinged back with exposure guide. The camera could be used with Rolleikin I to use 35mm film & with the special glass plate film adapter. Later models have a shutter release safety lock. The following parts of his model can be modernized to 1955 standard: waist level finder, larger focusing knob, double exposure safety lock, viewing lens bayonet, X-sync contact.
4





Rolleiflex Automat 6×6 – 型号2 = K4B
Highslide JS 1939年4月- 1945年10月
连续剧
:805.000 – 1.050.000(有的用禄来福来新标准共享)。
模型3 = K4B2
1945年10月- 1949年9月
连续剧
:1.050.000 – 1.099.999


镜片1939-1945
Zeiss Tessar 3,5 / 75,刺刀I
镜片1945-1949
Zeiss Jena Tessar 3,5 / 75
蔡司Oberkochen Opton 3,5 / 75
Schneider Xenar 3,5 / 75
全部带滤镜刺刀I
Finder镜头
Heidoscop Anastigmat 2,8 / 75mm
Bayonet I
Shutter
Compur – 快速,1 – 1/500秒,T&B,自拍。
胶片:6×6:B II 8(120)和35mm,带Rolleikin I适配器套件。
胶片输送:自动停止的缠绕杆,没有红色窗口,没有彩色涂层的薄膜压力板。杠杆还可以打开快门。双重暴露预防。
外形尺寸
:14.0×9.0x9.5cm
重量:928克。

此型号带有铰链背面和曝光指南。相机可以与Rolleikin I一起使用,使用35mm胶片和特殊的玻璃板胶片适配器。他的模型的以下部分可以现代化到1955标准:腰部水平取景器,更大的聚焦旋钮,双重曝光安全锁,观察镜头卡口,X同步接触。也可在修改后使用:Rolleimarin I在水外壳下,Rolleimeter,Rolleiflash。

图为K4B2型(1945-1949)。与K4B型号的不同之处在于:

K4B K4B2
灰色光圈和快门控制表盘镶嵌 黑色光圈和快门控制表盘镶嵌
Franke&Heidecke在观看镜头下的名字 弗兰克和海德克的名字正在拍摄镜头
没有电缆释放螺纹的快门释放 快门释放带有电缆释放螺纹





Rolleiflex Automat 6×6 – Model 2 = K4B
Highslide JS April 1939 – October 1945
Serials
: 805.000 – 1.050.000 (some shared with Rolleiflex Standard New).
Model 3 = K4B2
October 1945 – September 1949
Serials
: 1.050.000 – 1.099.999


Taking Lens 1939-1945:
Zeiss Tessar 3,5/75, Bayonet I
Taking Lens 1945-1949:
Zeiss Jena Tessar 3,5/75
Zeiss Oberkochen Opton 3,5/75
Schneider Xenar 3,5/75
All with filter Bayonet I
Finder lens:
Heidoscop Anastigmat 2,8/75mm
Bayonet I
Shutter:
Compur – Rapid, 1 – 1/500 sec., T & B, self timer.
Film: 6×6: B II 8 (120) & 35mm with Rolleikin I adapter set.
Film Transportation: winding lever with auto stop, no red window, film pressure plate without color coating. Lever also cocks the shutter. Double exposure prevention.
Dimensions
: 14.0×9.0x9.5cm
Weight: 928 grams.

This model has a hinged back with exposure guide. The camera could be used with Rolleikin I to use 35mm film & with the special glass plate film adapter. The following parts of his model can be modernized to 1955 standard: waist level finder, larger focusing knob, double exposure safety lock, viewing lens bayonet, X-sync contact.Also useable after modifications: Rolleimarin I under water housing, Rolleimeter, Rolleiflash.

Pictured is Model K4B2 (1945-1949). The differences with model K4B are:

K4B K4B2
Gray aperture & shutter control dial inlay Black aperture & shutter control dial inlay
Franke & Heidecke name under viewing lens Franke & Heidecke name under taking lens
Shutter release without cable release thread Shutter release with cable release thread
5
Rolleiflex Automat 6×6 – 型号K4 / 50
Highslide JS 1949年10月 – 1951年5月
连载:1.100.000 – 1.168.000


镜片
Zeiss Jena Tessar 3,5 / 75
蔡司Oberkochen Opton 3,5 / 75
Schneider Xenar 3,5 / 75
全部带过滤器Bayonet I
Finder镜头
Heidoscop Anastigmat 2,8 / 75mm
Bayonet I
快门
Compur – 快速,1 – 1/500秒,T&B,自拍。标准X同步。
胶片:6×6:B II 8(120)和35mm,带Rolleikin 2适配器套件。
胶片输送:带自动停止的卷绕杆,无红色窗口,带黑色涂层的薄膜压力板。杠杆还可以打开快门。双重暴露预防。

尺寸:14.3×9.0x9.5cm
重量:965克。这款型号的背面带有曝光导板,可以换成双胶片格式。相机可以与Rolleikin 2一起使用,使用35mm胶片。他的模型的以下部分可以进行现代化:更大的聚焦旋钮和双重曝光安全锁。修改后也可用:Rolleimarin I在水外壳下,Rolleimeter,Rolleiflash,Rolleikin 2,双格式背面。
6
Rolleiflex Automat 6×6 – Model K4 / 50
Highslide JS October 1949 – May 1951
Serials: 1.100.000 – 1.168.000


Taking Lens:
Zeiss Jena Tessar 3,5/75
Zeiss Oberkochen Opton 3,5/75
Schneider Xenar 3,5/75
All with filter Bayonet I
Finder lens:
Heidoscop Anastigmat 2,8/75mm
Bayonet I
Shutter:
Compur – Rapid, 1 – 1/500 sec., T & B, self timer. Standard X sync.
Film: 6×6: B II 8 (120) & 35mm with Rolleikin 2 adapter set.
Film Transportation: winding lever with auto stop, no red window, film pressure plate with black color coating. Lever also cocks the shutter. Double exposure prevention.

Dimensions: 14.3×9.0x9.5cm
Weight: 965 grams.This model has a hinged back with exposure guide, which can be exchanged for a dual film format back. The camera could be used with Rolleikin 2 to use 35mm film. The following parts of his model can be modernized: larger focusing knob & double exposure safety lock.Also useable after modifications: Rolleimarin I under water housing, Rolleimeter, Rolleiflash, Rolleikin 2 with dual format back.
6







Rolleiflex Automat 6×6 – 型号K4A
Highslide JS 1951年6月 – 1954年3月
连载:1.200.001 – 1.474.999


镜片
Zeiss Jena Tessar 3,5 / 75
蔡司Oberkochen Opton 3,5 / 75
Schneider Xenar 3,5 / 75
全部带过滤器Bayonet I
Finder镜头
Heidoscop Anastigmat 2,8 / 75mm
Bayonet I
快门
Compur – 快速,1 – 1/500秒,T&B,自拍。X同步。
胶片:6×6:B II 8(120)和35mm,带Rolleikin 2适配器套件。
胶片输送:带自动停止的卷绕杆,无红色窗口,带黑色涂层的薄膜压力板。杠杆还可以打开快门。双重暴露预防。

尺寸:14.3×9.0x9.5cm
重量:970克。此型号具有铰链双格式背面和曝光指南。特殊功能是新的EV相关曝光量表。从系列1.268.000开始,相机可以接受手柄和快速安装板。也可在水箱下使用Rolleimarin 1。可以升级到更大的聚焦旋钮。
7
Rolleiflex Automat 6×6 – Model K4A
Highslide JS June 1951 – March 1954
Serials: 1.200.001 – 1.474.999


Taking Lens:
Zeiss Jena Tessar 3,5/75
Zeiss Oberkochen Opton 3,5/75
Schneider Xenar 3,5/75
All with filter Bayonet I
Finder lens:
Heidoscop Anastigmat 2,8/75mm
Bayonet I
Shutter:
Compur – Rapid, 1 – 1/500 sec., T & B, self timer. X sync.
Film: 6×6: B II 8 (120) & 35mm with Rolleikin 2 adapter set.
Film Transportation: winding lever with auto stop, no red window, film pressure plate with black color coating. Lever also cocks the shutter. Double exposure prevention.

Dimensions: 14.3×9.0x9.5cm
Weight: 970 grams.This model has a hinged dual format back with exposure guide. The special feature is a new EV related exposure scale. From serial 1.268.000 the camera accepts hand grip and quick mount plate.Also useable with Rolleimarin 1 under water housing. Can be upgraded to larger focusing knob.
7



Rolleiflex Automat 6×6 – 型号K4B
Highslide JS 1954年4月 – 1956年9月
连载:1.428.001 – 1.739.999


镜片
Zeiss Jena Tessar 3,5 / 75
蔡司Oberkochen Opton 3,5 / 75
Schneider Xenar 3,5 / 75
全部带过滤器Bayonet I
Finder镜头
Heidoscop Anastigmat 2,8 / 75mm
Bayonet I
快门
Compur – 快速,1 – 1/500秒,T&B,自拍。MX同步。
胶片:6×6:B II 8(120)和35mm,带Rolleikin 2适配器套件。
胶片输送:带自动停止的卷绕杆,无红色窗口,带黑色涂层的薄膜压力板。杠杆还可以打开快门。双重暴露预防。

尺寸:14.3×9.0x9.5cm
重量:980克。此型号具有铰链双格式背面和曝光指南。特殊功能是新的EV相关曝光量表。从1.464.000系列中,可以通过按下光圈轮中的按钮来解除EV耦合。从序列1.700.000开始,EV耦合可以通过光圈轮中的开关脱离。也可以不加修改地使用:Rolleimarin 2在水外壳和所有当前配件下。
8




Rolleiflex Automat 6×6 – Model K4B
Highslide JS April 1954 – September 1956
Serials: 1.428.001 – 1.739.999


Taking Lens:
Zeiss Jena Tessar 3,5/75
Zeiss Oberkochen Opton 3,5/75
Schneider Xenar 3,5/75
All with filter Bayonet I
Finder lens:
Heidoscop Anastigmat 2,8/75mm
Bayonet I
Shutter:
Compur – Rapid, 1 – 1/500 sec., T & B, self timer. M X sync.
Film: 6×6: B II 8 (120) & 35mm with Rolleikin 2 adapter set.
Film Transportation: winding lever with auto stop, no red window, film pressure plate with black color coating. Lever also cocks the shutter. Double exposure prevention.

Dimensions: 14.3×9.0x9.5cm
Weight: 980 grams.This model has a hinged dual format back with exposure guide. The special feature is a new EV related exposure scale. From serial 1.464.000 the EV coupling can be disengaged by pressing a button in the aperture wheel. From serial 1.700.000 the EV coupling can be disengaged with a switch in the aperture wheel.Also useable without modifications: Rolleimarin 2 under water housing and all current accessories.
8
