福伦达 voigtlande Vito C series (1960-1966)

Vito C series (1960-1966)



Vito C相机系列取代了Vito B相机系列
电影装载系统被经典的开背所取代。
快门在相机中有或没有胶片闪光。
快门释放装置不在顶部外壳上,而是在机身前部。
Vito C相机没有测光表,也没有测距仪。
Vito CD摄像机具有非耦合光度计。
Vito CL相机配有耦合光度计。
Vito CLR相机配有耦合测光表和耦合测距仪。
所有相机均以标准或豪华型号销售:
差异只是装饰性的。
标准型号:空白金属快门释放和镜筒,顶部外壳上的浮雕黑色名称,黑色和红色电影提醒,透明的altuglass快门面。
豪华型号:黑色金属快门释放,皮革覆盖镜筒,凸起的镀铬名称,胶片提醒盘,皮革中央,镀铬快门面。

The Vito C camera series replace the Vito B camera series.1
The film loading system is replaced by a classic opening back.
The shutter fires with or without film in the camera.
The shutter release is not on the top housing but on front of the body.
Vito C cameras don’t have light meter nor rangefinder.
Vito CD cameras have un uncoupled light meter.
Vito CL cameras have a coupled light meter.
Vito CLR cameras have a coupled light meter and a coupled rangefinder.
All of the cameras are sold in Standard or Deluxe model :
Differences are only cosmetic.
Standard models : blank metal shutter release and lens barrel, embossed black name on top housing, black and red film reminder, transparent altuglass shutter face.
Deluxe models : black metal shutter release, leather covered lens barrel, raised chrome name, film reminder disc with leather in the center, chrome shutter face.

Vito C Standard
1st model

Vito C Deluxe
1st model

Vito C Standard
2nd model

Vito C Deluxe
2nd model

Vito CD Standard
1st model

Vito CD Deluxe
1st model

Vito CD Standard
2nd model

Vito CD Deluxe
2nd model

Vito CL Standard
1st model

Vito CL Deluxe
1st model

Vito CL Standard
2nd model

Vito CL Deluxe
2nd model

Vito CL Standard
3rd model

Vito CL Deluxe
3rd model

Vito CLR Standard
1st model

Vito CLR Deluxe
1st model

Vito CLR Standard
2nd model

Vito CLR Deluxe
2nd model

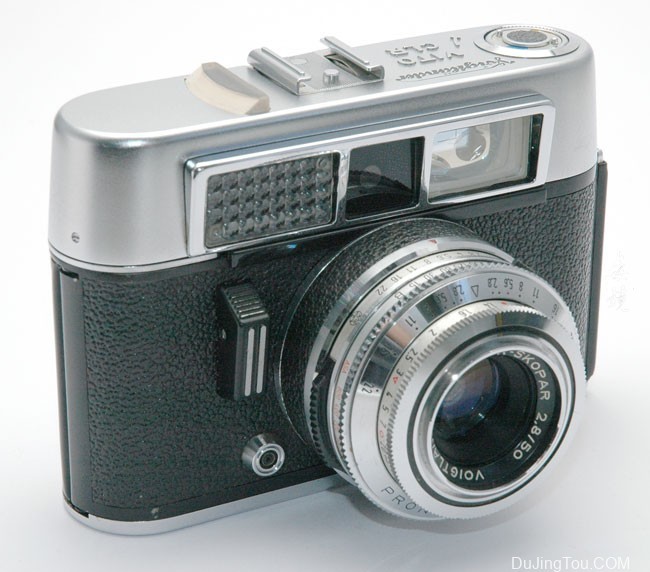

Vito CLR Deluxe
3rd model

Vito CS

Vito CSR



Vito C Standard
first model


1959 – 24×36 Film
Pronto shutter 1/250. Lanthar 2.8/50mm.
Accessory shoe fitted into the top housing.
Name engraved in large characters.



Vito C Deluxe
first model


1959 – 24×36 Film
Pronto shutter 1/250. Lanthar 2.8/50mm.
Accessory shoe fitted into the top housing.



Vito C Standard
second model


1963 – 24×36 Film
Prontor 250 S shutter 1/250. Lanthar 2.8/50mm.
Protruding accessory shoe.
 Home

Vito C Deluxe
second model


1963 – 24×36 Film
Prontor 500 LK 1/500 shutter . Color-Skopar 2.8/50mm.
Protruding accessory shoe.



Vito CD Standard
first model


1960 – 24×36 Film
Pronto 1/250 shutter. Lanthar 2.8/50mm.
Uncoupled selenium meter.
Accessory shoe fitted into the top housing.



Vito CD Deluxe
first model


1960 – 24×36 Film
Pronto shutter 1/250. Lanthar 2.8/50mm.
Uncoupled selenium meter.
Accessory shoe fitted into the top housing.

Vito CD Standard
second model


1963 – 24×36 Film
Prontor 250 S shutter. Lanthar 2.8/50mm.
Uncoupled selenium meter.
Protruding accessory shoe.

Vito CD Deluxe
second model


1963 – 24×36 Film
Prontor 250 S shutter. Lanthar 2.8/50mm.
Uncoupled selenium meter.
Protruding accessory shoe.



Vito CL Standard
first model


1960 – 24×36 Film
Pronto LK 1/500 shutter. Color-Skopar 2.8/50mm.
Coupled selenium meter, needle visible on top.
Accessory shoe fitted into the top.
