Icarex series (1966-1971)
Icarex系列由Voigtländer设计
并以ZeissIkonVoigtländer品牌名称出售。
所有相机都有可互换的卡口或M42卡口镜头
和布焦平面快门1/1000，
可互换的观看屏幕和取景器，但Icarex 35S带有固定棱镜。
Rollei买了这个品牌，相机变得轻微改变VSL1，VSL2和VSL3。
The Icarex series was designed by Voigtländer
and sold with the Zeiss Ikon Voigtländer brand name.
All cameras have interchangeable bayonet or M42 mount lenses
and a cloth focal plane shutter 1/1000,
interchangeable viewing screens and viewfinders but the Icarex 35S came with a fixed prism.
Rollei bought the brand and the cameras became with slight changes the VSL1, VSL2 and VSL3.
Icarex 35
|
Icarex 35 BM |
Icarex 35 TM |
Icarex 35 S |
Icarex 35 S BM |
Icarex 35 S TM |
Icarex 35 CS |
Icarex 35 CS |
Icarex 35 CS PRO |
Icarex 35
1966 – 24×36 Film
Cloth focal plane shutter 1/1000.
Bayonet mount lens Carl Zeiss Tessar 2.8/50mm (with its original front cap).
Waist level finder with a folding magnifier.
Can be replaced by prism viewfinders with or without meter.
布料焦平面快门1/1000。
卡口蔡司Tessar 2.8 / 50mm卡口镜头（带原装前盖）。
带折叠放大镜的腰部水平仪。
可以用带或不带仪表的棱镜取景器代替。
Icarex 35 with open waist level finder.
Icarex 35 BM
1969 – 24×36 Film
Cloth focal plane shutter 1/1000.
Bayonet mount lens Carl Zeiss Tessar 2.8/50mm.
Interchangeable viewing screen and viewfinder. No light meter.
Icarex 35 TM
1969 – 24×36 Film
Cloth focal plane shutter 1/1000.
M42 thread mount lens Carl Zeiss Tessar 2.8/50mm.
Interchangeable viewing screen and viewfinder. No light meter.

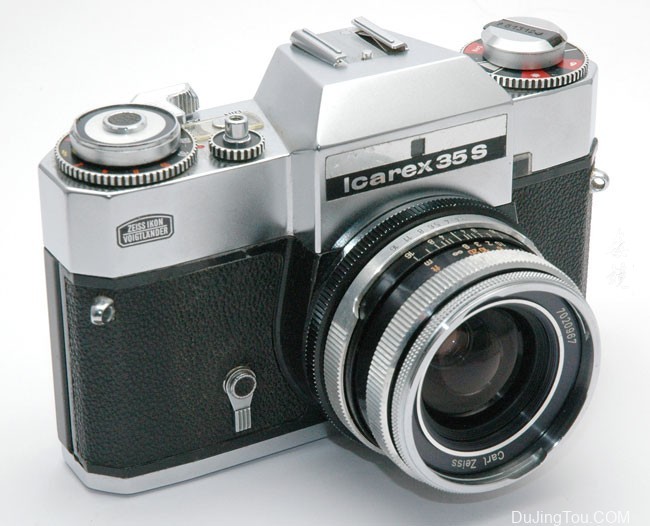

Icarex 35 S
1968 – 24×36 Film
Cloth focal plane shutter 1/1000.
Bayonet mount lens Carl Zeiss Skoparex 3.4/35mm.
Fixed prism. CdS TTL metering.
Icarex 35 S BM
1969 – 24×36 Film
Cloth focal plane shutter 1/1000.
Bayonet mount lens Carl Zeiss Super-Dynarex 4/135 mm.
Fixed prism. CdS TTL metering.
Icarex 35 S TM
1969 – 24×36 Film
Cloth focal plane shutter 1/1000.
Thread mount lens Carl Zeiss Tessar 2,8/50 mm.
Fixed prism. CdS TTL metering.
Icarex 35 CS
1968 – 24×36 Film
Cloth focal plane shutter 1/1000.
Bayonet mount lens Carl Zeiss Tessar 2.8/50mm.
Interchangeable viewing screen and viewfinder. CdS TTL metering.
Icarex 35 CS
1970 – 24×36 Film
Cloth focal plane shutter 1/1000.
Bayonet mount lens Zeiss Ikon Color-Pantar 2.8/50mm.
Interchangeable viewing screen and viewfinder(different disk from 1968 model).
CdS TTL metering.
Icarex 35 CS PRO
1968 – 24×36 Film
Cloth focal plane shutter 1/1000.
Bayonet mount lens Carl Zeiss Tessar 2.8/50 mm.
Interchangeable viewing screen and viewfinder(different disk from 1968 model).
CdS TTL metering.
Black camera with “PRO” engraved on the left of the body.
No difference from the CS “normal” model.
